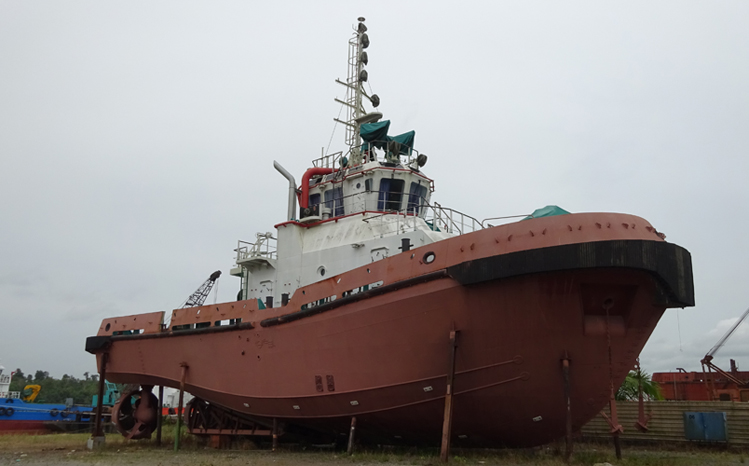

VT 6 29.95M Multi-purpose ASD Tug

General Particulars

Project Name VT6
IMO No. 9703370
Basic Function ASD Tug
Classification Nippon Kaiji Kyokai (NK)
Descriptive Note Multi-purpose ASD Tug
Gross Tonnage 297 Ton
L.O.A 29.95 Meters
L.B.P 26.67 Meters
Breadth Mld 9.80 Meters
Depth Mld 4.90 Meters
Design Draft 3.60 Meters
Bollard Pull 40 Ton
Designer Kenton Marine Singapore Pte Ltd

Tank Capacities

Ballast Water 33.25 m3
Fresh Water 28.42 m3
Fuel Oil 145.94 /m3

Fire Fighting Class-1

Capacity 1200 m3/hr for each monitor (2 Monitor)
Throw and Height 120 m x 45 m
Foam Max Foam inductor adjustable, 300 L/min , 15.2 bar inlet pressure
Oil Dispersant 2X 1-1/4" UOC 600 Nozzle, Flat Spray Type

Propulsion System

2X Main Engine Cummins KTA50 - 4 Stroke Diesel @ 1,800RPM
2X Propellers Schottel Rudder Propeller 1012 CP, CPP, 2,100 mm Dia. with 4 blades - WAG 19A modified type nozzle
