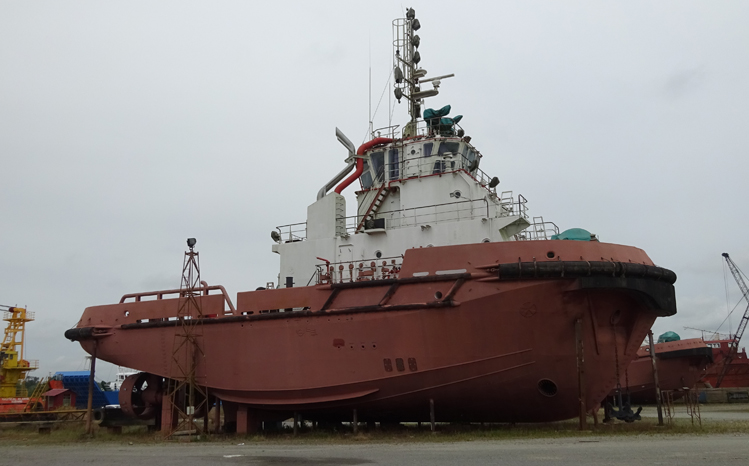

VT 10 32.5M Multi-purpose Tug

General Particulars

Project Name VT10
IMO No. 9634024
Basic Function Towing, Mooring, Line handling, Harbour, Escort, Anchor Handling
Classification Bureau Veritas
Descriptive Note Multi-purpose Azimuth Stern Drive Tug
Gross Tonnage 438 Ton
L.O.A 32.50 Meters
L.B.P 27.50 Meters
Breadth Mld 11.70 Meters
Depth Mld 5.30 Meters
Design Draft 3.71 Meters
Max Draft 4.30 Meters
Bollard Pull 50 Ton
Designer Kenton Marine Singapore Pte Ltd

Tank Capacities

Ballast Water 83.42 m3
Fresh Water 64.10 m3
Fuel Oil 168.97 /m3

Fire Fighting Class-1

Capacity 1200 m3/hr for each monitor (2 Monitor)
Throw and Height 120 m x 45 m
Foam Max Foam inductor adjustable, 300 L/min , 15.2 bar inlet pressure
Oil Dispersant 2X 1-1/4" UOC 600 Nozzle, Flat Spray Type

Propulsion System

2X Main Engine Caterpillar 3516C, 2,200HP @ 1600RPM
Azimuth Thruster BAT 523, BERG 1566kW, 1,600RPM, 2300 Diameter CPP
