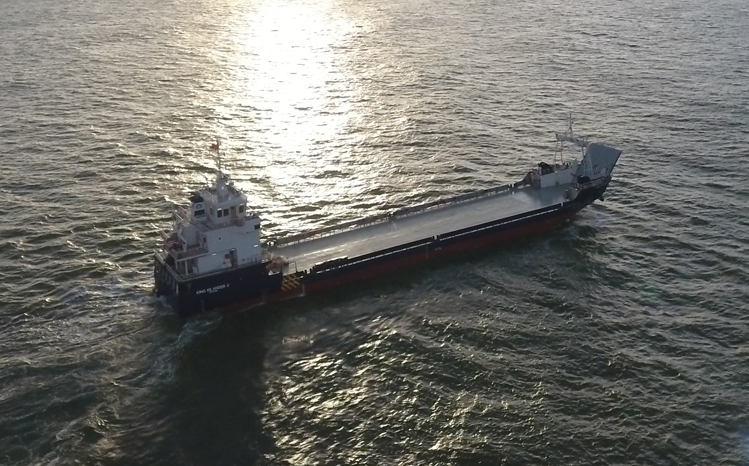

VT 13 80M Landing Craft

General Particulars

Vessel Name John Duigan
Flag Australia
IMO No. 9717606
Basic Function Landing Craft
Classification Bureau Veritas
Descriptive Note Container vessel, general cargo for shallow operation
Gross Tonnage 1,758 ton
L.O.A 80.00 Meters
L.B.P 74.41 Meters
Breadth Mld 16.00 Meters
Depth Mld 4.80 Meters
Design Draft 3.59 Meters
Max Draft 3.68 Meters
Designer United Ship Design


Cargo Capacities

Long Range F.O 1,466.1 m3
Deck Strength 10 Ton/m2
Open Deck Space Est. 900.00 m2


Tank Capacity

Daily Fuel Oil 404.2 m3
Fresh Water 84.3 m3
Fresh Water Ballast 1,219.0 m3


Propulsion System

2X Main Engine Cummins KTA50-M2, 1,600BHP at 1,800RPM with Gearbox ratio 5.044:1
2X Propellers FPP, Dia 2,200 X 1,470 X 4 Blades X R/L X BAR 0.55 with KORT NOZZLE
Steering System 3.5TM Hydraulic Steering System (Connecting rode type)
Bow Thruster Engine Cummins QSM11-M 350BHP @ 1,800RPM with Gearbox ratio 1.459:1
Bow Thruster ZF TT 4000, L-Drive unit 449kW @ 1,576 RPM
